Home > Products > GSZ3000V adjustable speed dry or wet-mix shotcrete
GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete
GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete GSZ3000V adjustable speed dry or wet-mix shotcrete

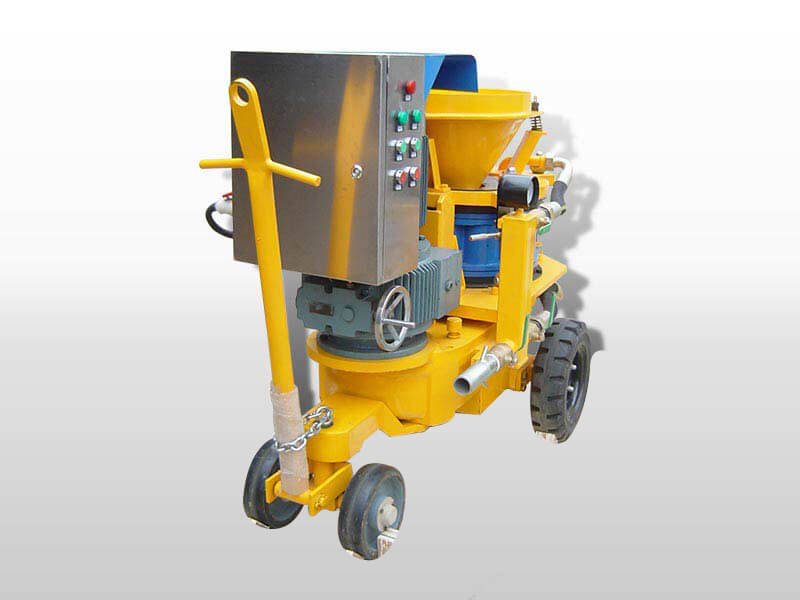

GSZ3000V adjustable speed dry or wet-mix shotcrete

Rated output : 2-5m3/h

Max. horizontal conveying distance : 35m(wet)/200m(dry)

Max. aggregate size : 15mm

Concrete slump : 8~15cm(wet)

Conveying hose dia : 50/65mm

Operating air pressure : I0.2~0.6MPa

Chat online Email Inquiry
  • Product introduction
  • Product parameters
Introduction

GSZ3000V was one adjustable speed dry or wet-mix shotcrete machine made by Gaode Equipment. The machine itself can be used as dry shotcrete machine. When it used with GH15 dosing pump, it can do wet shotcrete spraying. Compared with the popular shotcrete equipment, it has easy sealing, smooth stream and uniform spraying etc. features. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc.

Features

1. Mechanical speed control.
2. Durable spare parts.
3. Heavy duty solid wheels.
4. Function stable and reliable
5. Can be customized.

Application

It’s mainly used for dry/wet spraying concrete. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc. projects.

GSZ3000V adjustable speed dry or wet-mix shotcrete

GSZ3000V adjustable speed dry or wet-mix shotcrete
For dry shotcrete spraying
Rated output 2-5m3/h
Max. horizontal conveying distance 35m(wet)/200m(dry)
Max. aggregate size 15mm
Concrete slump 8~15cm(wet)
Conveying hose dia. 50/65mm
Operating air pressure I0.2~0.6MPa
Air consumption 10~12m3/min
Rotor Rev. 5-12r/min
Rebound ≤10 %
Main electric motor power 7.5kW
Variable gearbox: MBLY75
Overall dimension(L×W×H) 1580×850×1250mm
Weight 950Kg



For wet shotcrete (with GH15 peristaltic dosing pump)
Output Capacity 24-120L/h
Max. Particle Size 3 mm
Max. Work Pressure 8 bar/116PSI
Max. Suck lift 2 meter
Hose Tube ID 15mm
Electric motor 0.75Kw, 3 phase 380V
Overall Dimension(L×W×H) 0.86×0.76×0.85m
Net Weight 105kg
