Home > Products > GPC5-15S s valve vehicular concrete shotcrete pump

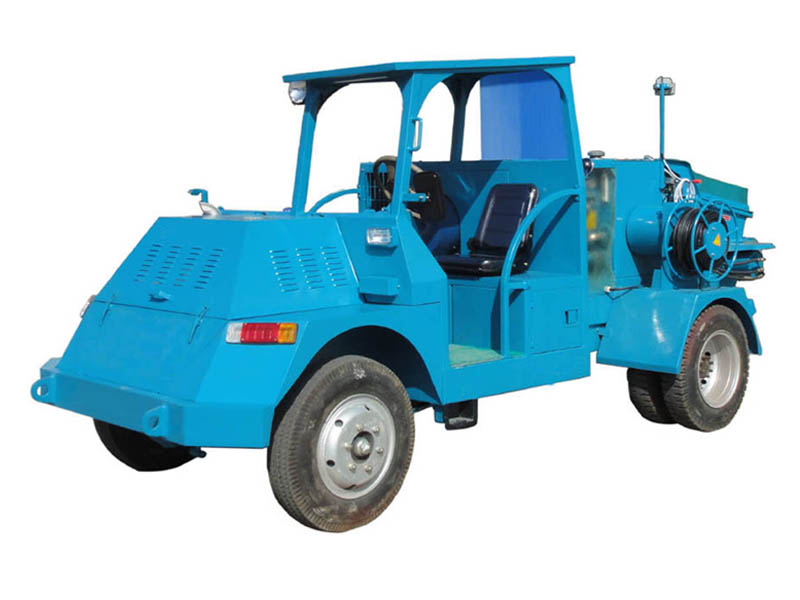

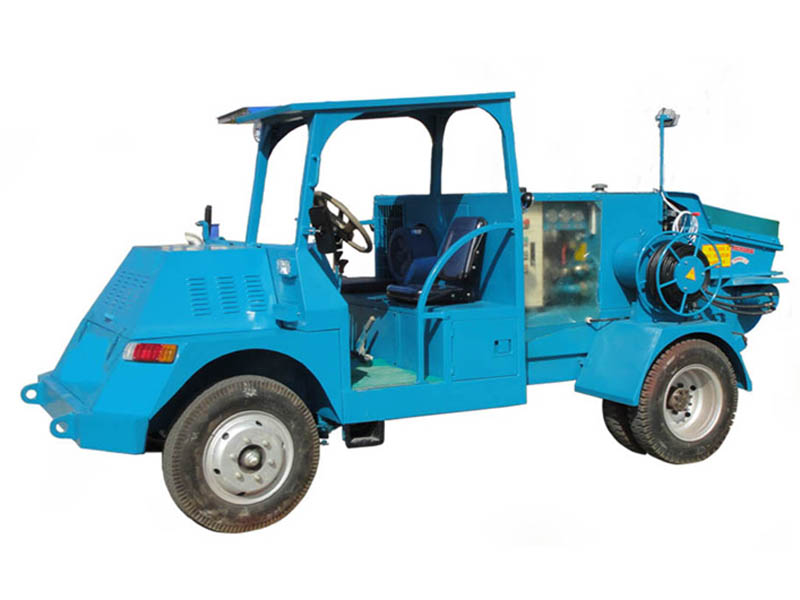

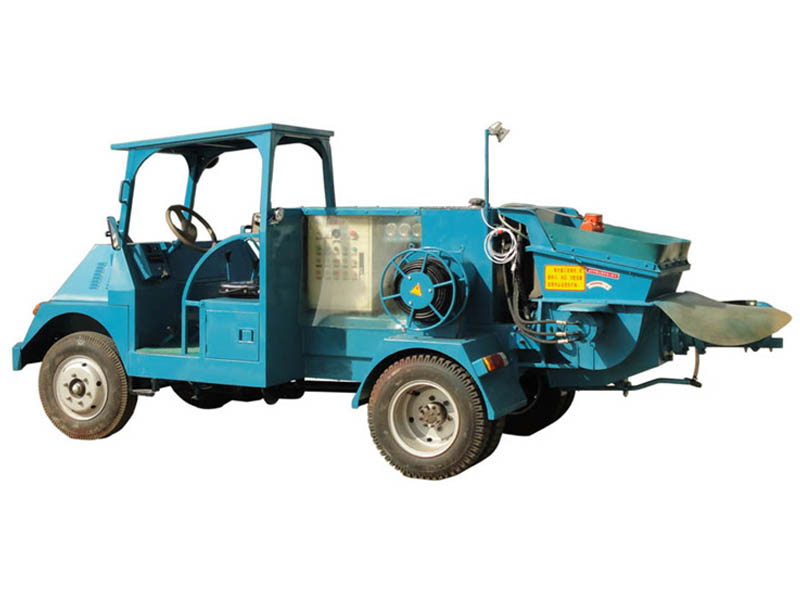

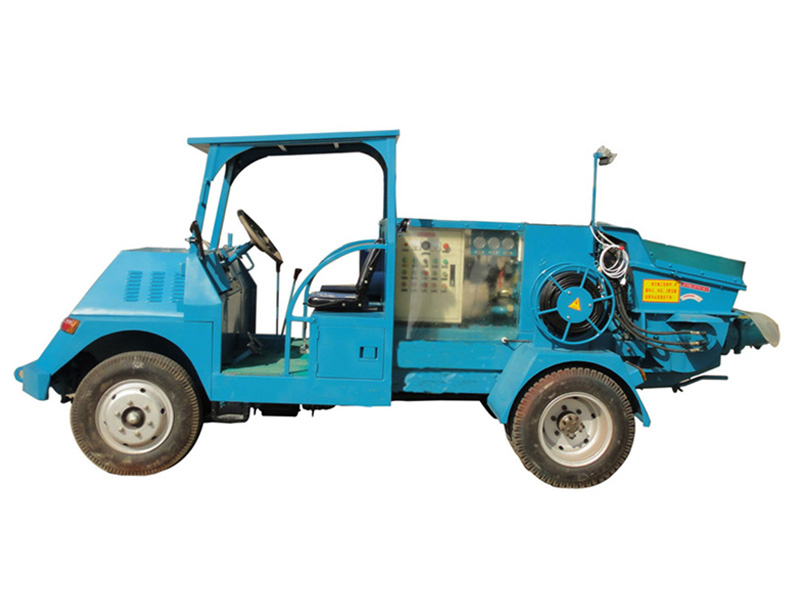

GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump
GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump GPC5-15S s valve vehicular concrete shotcrete pump

GPC5-15S s valve vehicular concrete shotcrete pump

Rated output : 5-15

Rated pressure : 4

Max. Rated vertical distance : 50

Max. Rated horizontal distance : 180

Distributing valve form : S tube valve

Max. Rated vertical distance : 50

Chat online Email Inquiry
  • Product introduction
  • Product parameters
Introduction

This S tube valve type shotcrete machine for sale is a vehicular hydraulic concrete pump which can do wet shotcrete/concrete spraying for slope, tunnel, mining, etc.

Features

1. Running system. It moves easily from different construction sites without additional traction thus save time.
2. Pipelines fixed on the vehicle thus save labor and time from connecting and disconnecting pipelines before and after the project.
3. Integrated machine makes it easy to control and make the site more standardized and orderly.
4. Compared with common wet shotcrete machine on same condition, the operation cycle of this machines save more than 2 hours. It saves labor and strength.

Application

It can be used for conveying and spraying of plain concrete, fiber concrete.

GPC5-15S s valve vehicular concrete shotcrete pump

GPC5-15S s valve vehicular concrete shotcrete pump
Parameter unit GPC5-15S
Pump system Rated output m³/h 5-15
Pump system Rated pressure MPa 4
Pump system Max. Rated vertical distance m 50
Pump system Max. Rated horizontal distance m 180
Pump system Distributing valve form   S tube valve
Pump system Max. Rated vertical distance m 50
Pump system Max. aggregate size mm 25
Pump system Max. Rated vertical distance m 50
Pump system Slump cm 12-23
Pump system Air consumption m³/min >9-20
Pump system System air pressure MPa 0.7
Pump system Working air pressure Mpa 0.4-0.6
Pump system Rebound rate % ≦15
Pump system Dust density (near machine) mg/m³ ≦10
Pump system Conveying cylinder ID *stroke mm Ф160*800
Pump system Pump motor power kw 18.5
Pump system Dosing pump motor power kw 0.55
Pump system Vibrator motor power kw 0.25
Pump system Cooling fan motor power kw 0.12
Pump system Voltage/frequency V/Hz 380/50
Pump system Oil tank volume L 128
Pump system Charging heightr mm 1400
Running system Running diesel power kw 20
Running system Max. running speed kw/h 25
Running system Wheel track mm 1500
Running system Wheel base mm 2600
Running system Min. turning radius m >4.3
Running system Max. gradeability % 30
Running system Min. ground clearance mm 130
Complete machine Dimension mm 5250*1950*2110
Complete machine Weight kg 3800
