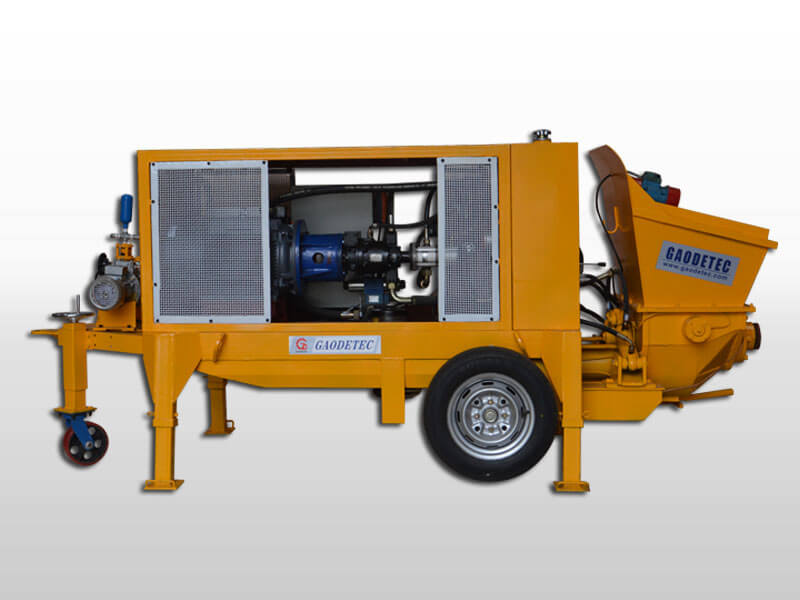

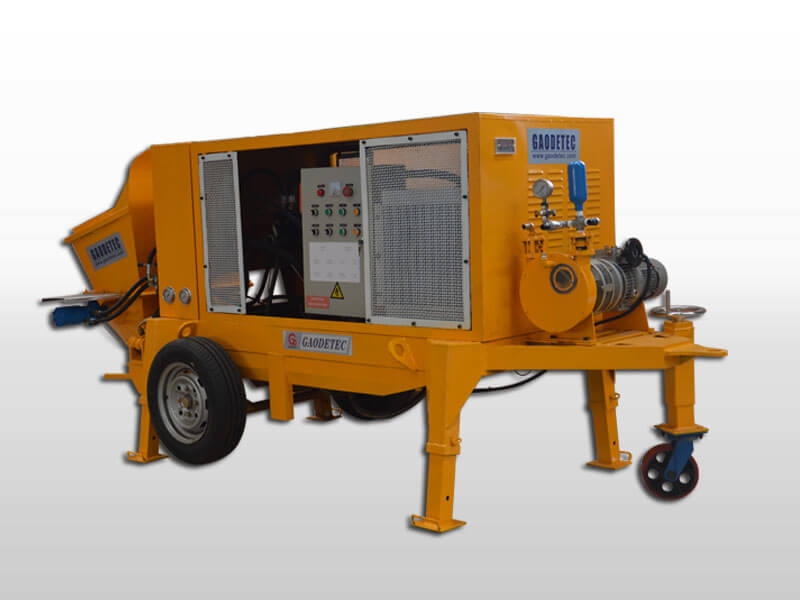

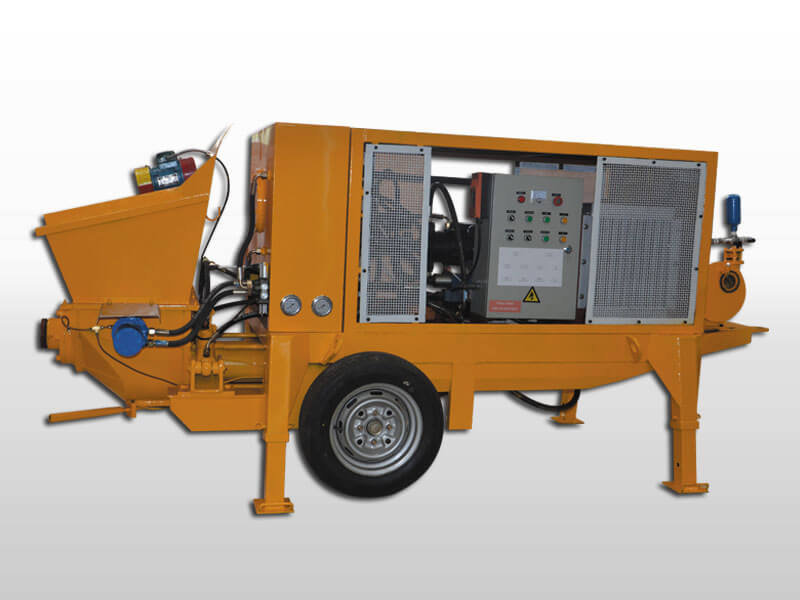

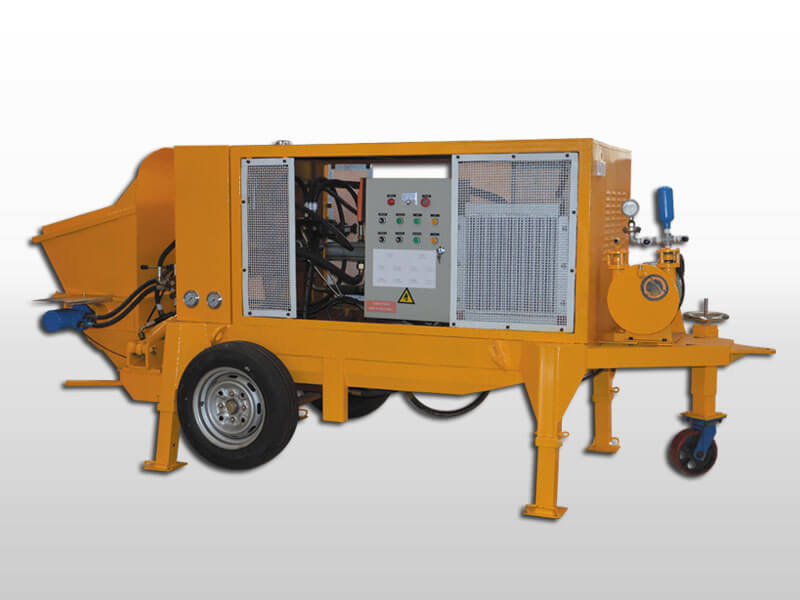

GPS-7A Wet Shotcrete Machine

Output : 5-8m³/h

Max. pressure : 8MPa

Distribution valve type : S valve

Stroke x cylinder ID : 550×120mm

Hopper volume : 210L

Power : 22Kw

Introduction

GPS-7A wet shotcrete machine use hydraulic pumping S valve structure, two oil cylinders Reciprocating motion alternately to pump concrete from conveying pipe to nozzle, Add compress air to wet shotcrete machine outlet and add A percentage of the accelerator at nozzle, concrete slurry be sprayed to surface directly. GPS-7A output could be adjusted continuously: main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely. Accelerating adding quantity could be adjusted continuously: according to concrete spraying volume adjust step-less.

Features

1. Use S valve reversing, good sealing performance, longer working life.
2. Equipped floating wearing ring on S valve, could self-compensating wearing.
3. High outlet pressure, could meet the demands of concrete pumping for high building.
4. Hydraulic system adopt air-cooler, easy operate, don’t need water.
5. With reverse function, reduce pipe plugged.
6. HMain oil pump is variable displacement plunger pump, spraying volume could be adjusted freel.
7. Equipped self-lubrication system to automatic lubrication for main sealing parts, lengthen wearing parts working life.
8. PLC control, With wireless remote control, easy to operate.
9. With guide pulley, easy to move, location.
10. Accelerating adding quantity could be adjusted continuously.
Application

GPS-7A wet shotcrete machine used for wet concrete spraying in mine, tunnel, culvert, metro, hydropower engineering, undergroun.

Product parameters

Item spec unit Remarks
output 5-8 m³/h
Max. pressure 8 MPa
Distribution valve type S valve   With accumulator
Stroke x cylinder ID 550×120 mm
Hopper volume 210 L With mixer and vibrator
Power 22 Kw
rotation 1450 r/min
Main oil pump 30-50 cc/Rev constant power control, Manual variable
Hydraulic oil tank volume 160 L
Air pressure 0.7 Mpa >shotcrete
Air consumption 6 m3/min shotcrete
Acceptable max. aggregate size 20 mm
Suitable concrete slump 8-15 cm
Accelerate flow 70-320 L/min GH15-200
Dimension 3500x1360x1530 mm
Weight 1515 kg
