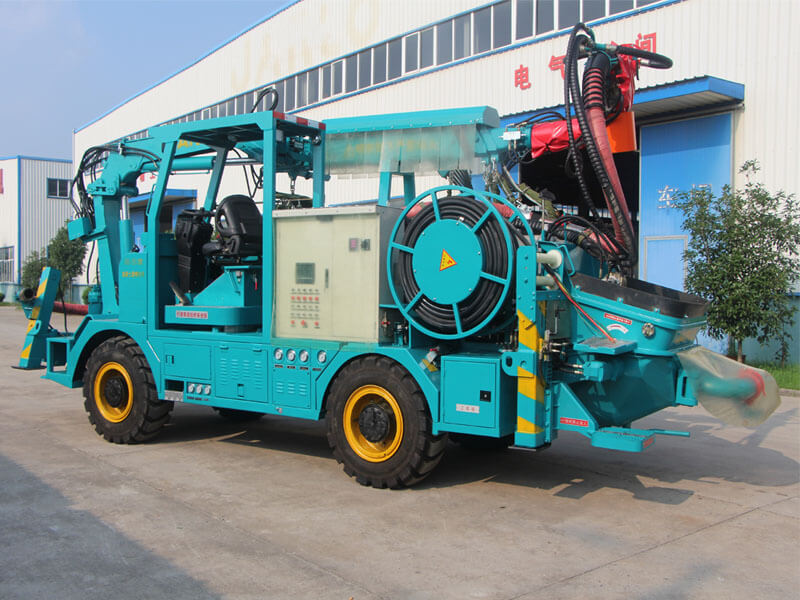

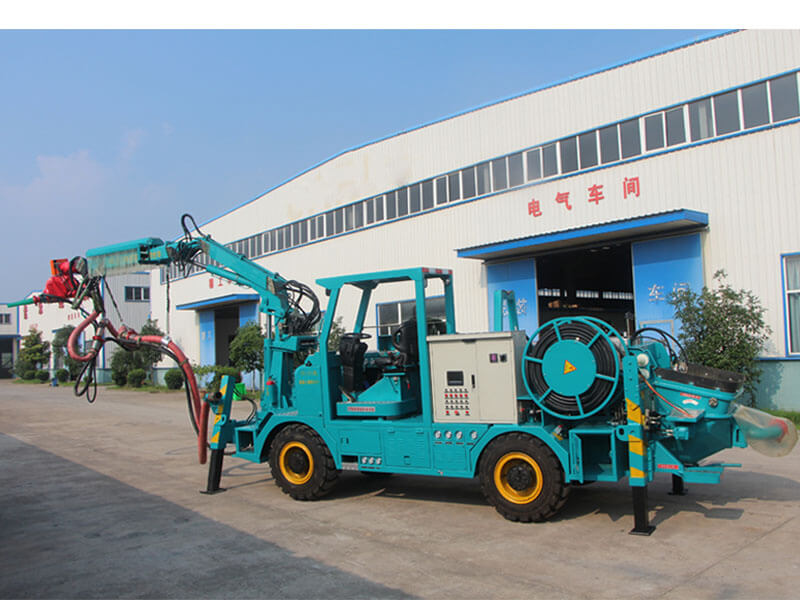

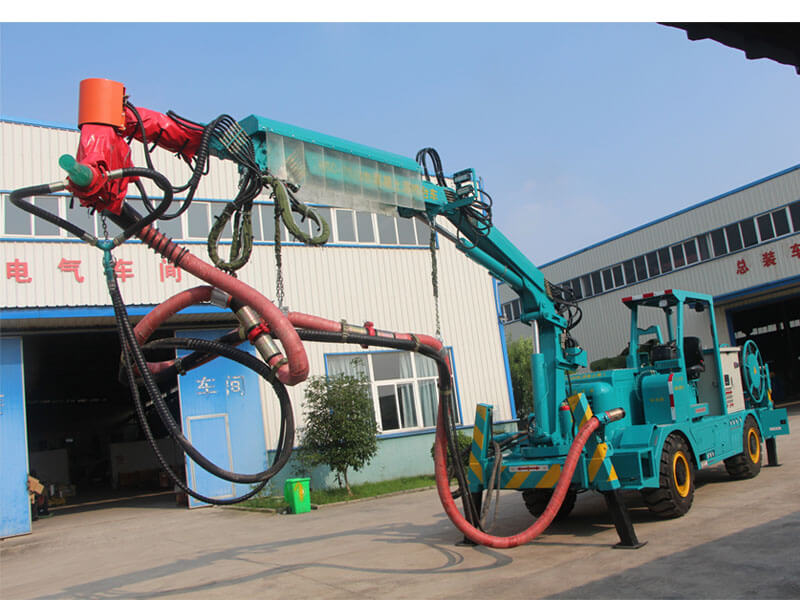

HSC-2513 concrete spray shotcrete system with robotic

Unity machine parameter : 7150×2150×3000m

Unity machine parameter : 9800Kg

Arm and Leg parameter : 13m

Pump parameter : 25 m3/h

Chassis parameter : 3000mm

Auxiliary system parameter : 800 L/h

Chat online Email Inquiry
  • Product introduction
  • Product parameters
Introduction

The series wet shotcrete system equipments have multi-function and can be applied widely.

Features

1. HSC-2513 adopts arm structure of single rotate and singe telescope. HSC-2008 adopts arm structure of small size straight arm. Both two models shotcrete system can be used in small tunnel section and rotate the arm to spraying position.
2. The joints and freedom of motion can meet the requirement of spraying concrete. It’s reliable, stable and convenient. There are flood lights on both two sides of arm for spraying.
3. HSC-2513 shotcrete system equipped with hinge type chassis and diesel engine. We also adopted hydraulic torque converter and gearbox transmission, four-wheel drive, hinge hydraulic rotation, four-wheel hydraulic service brake, transmission shaft mechanical parking brake.
4. Transversal arrangement cab which makes it’s easy to operate without turning around. There are forward and reverse gears, high speed and low speed gears.
5. There are hydraulic support arm at the both sides of spray arm base, which ensure the stability of arm stretch.
6. There is diesel engine which ensures the arms can be folded and cleaned when electric power is off.
7. Reliable hydraulic pump and hydraulic valves adopted to ensure the whole pump reliable.

Application

It is suitable for smaller tunnel section and smaller shotcrete amount.

HSC-2513 concrete spray shotcrete system with robotic

HSC-2513 concrete spray shotcrete system with robotic
Item unit HSC-2513C HSC-2513D HSC-2513K
Unity machine parameter L×W×H mm 7150×2150×3000
Unity machine parameter Weight kg 9800 9800 10800
Arm and Leg parameter Max. Spray height m 13 13 13
Arm and Leg parameter Max. Spray width m 2×11 2×11 2×11
Arm and Leg parameter Max. Spray depth m 6 6 6
Arm and Leg parameter big arm pitching angle degree -30º~+75º -30º~+75º -30º~+75º
Arm and Leg parameter small arm pitching angle degree 70º 70º 70º
Arm and Leg parameter nozzle swing angle degree 360º 360º 360º
Arm and Leg parameter nozzle swing angle degree 240º 240º 240º
Arm and Leg parameter drive moder - electric motor work
Arm and Leg parameter electric motor rated power kW 52 52 52
Arm and Leg parameter electric motor working voltage V/Hz 380/50 380/50 380/50
Arm and Leg parameter diesel engine rated power Kw 55 55 55
Pump parameter rated output m3/h 25 25 25
Pump parameter rated reversing time /min 26 26 26
Pump parameter system pressure Mpa 23 23 23
Pump parameter outlet pressure Mpa 7 7 7
Pump parameter convey cylinder inner diametere mm Φ160 Φ160 Φ160
Pump parameter convey cylinder stroke mm 800 800 800
Pump parameter nozzle diameter mm Φ45 Φ45 Φ45
Chassis parameter wheel base mm 3000 3000 3000
Chassis parameter front and rear axle drive mode - 4×4 4×4 4×4
Chassis parameter hydraulic oil tank volume L 530 580 530
Chassis parameter fuel tank capacity L 90 70 70
Chassis parameter max. running speed Km/h 22 22 22
Chassis parameter max. gradeability % 40 40 40
Chassis parameter min. ground clearance mm 400 400 400
Chassis parameter min. turning radius m 7.0 7.0 7.0
Chassis parameter braking distance m ≤10 ≤10 ≤10
Auxiliary system parameter Chassis parameter cable 100 100 100
Auxiliary system parameter air compressor power kW - - 55
Auxiliary system parameter air compressor output m3/min - - 12
Auxiliary system parameter air compressor working pressure Mpa - - 0.5
Auxiliary system parameter additive output L/h 800 800 800
Auxiliary system parameter additive system pressure Mpa 1.0 1.0 1.0
Auxiliary system parameter coagulant tank capacity L 780 780 780
